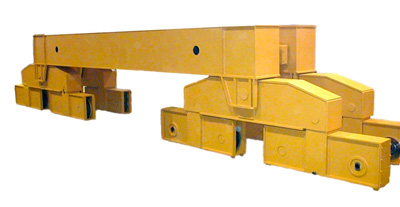

EMH End TrucksEnd Trucks, Model UHB Bogie for Double Girder Cranes

Item # Wheel
Diameter
Wheel
Base
Typical 120
fpm Motor
F Load
(lbs)
Specifications*
UHB-250.480.5000.2 10 in. 11ft. 10.5in. 2×5 HP 58,450 UHB-250 Specs.
UHB-250.480.5000.4 10 in. 11ft. 10.5in. 4×5 HP 58,450 UHB-250 Specs.
UHB-315.575.5000.2 12 in. 14ft. 10.5in. 2×7.5 HP 76,430 UHB-315 Specs.
UHB-315.575.5000.4 12 in. 14ft. 10.5in. 4×7.5 HP 76,430 UHB-315 Specs.
UHB-400.650.5000.2 16 in. 14ft. 10.5in. 2×7.5 HP 92,170 UHB-400 Specs.
UHB-400.650.5000.4 16 in. 14ft. 10.5in. 4×7.5 HP 92,170 UHB-400 Specs.
UHB-500.750.5000.2 20 in. 14ft. 4.5in. 2×10 HP 137,130 UHB-500 Specs.
UHB-500.750.5000.4 20 in. 14ft. 4.5in. 4×10 HP 137,130 UHB-500 Specs.
UHB-630.900.6150.2 24.75 in. 20ft. 2.5in. 2×7.5 HP 222,550 UHB-630 Specs.
UHB-630.900.6150.4 24.75 in. 20ft. 2.5in. 4×7.5 HP 222,550 UHB-630 Specs.

* Subject to minor variations.
