Wire Rope Hoists – Standard PackagedHoists, Wire Rope – Cross Mounted for Single Girder Cranes

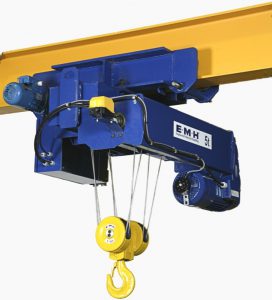

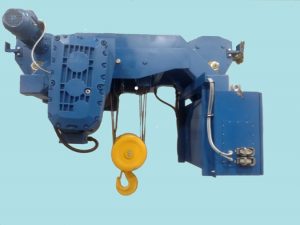

Cross Mounted Hoist

Prices shown are list prices and include all electrical controls per applicable N.E.C. Specifications, NEMA enclosure with quick disconnect plugs, host completely wired an reeved. All prices are for 460/3/60 power. Adders for 208/3/60 or 230/3/60 are shown on options page. Push button station and 110V control transformer are optional. Monorail hoists furnished with flat tread wheels standard.

Cap. (Tons) Hoist Model No. Reeving Lift (ft.) Speed (fpm) HMI Rating Suggested List Price
2.5 EM 1025L6-322.42.060.CM 4 to 2 20 32/5.3 H4 Click for price.
2.5 EM 1025L6-322.42.110.CM 4 to 2 36 32/5.3 H4 Click for price.
2.5 EM 1025L6-322.42.180.CM 4 to 2 59 32/5.3 H4 Click for price.
3.2 EM2032L6-323.42.070.CM 4 to 2 23 32/5.3 H4 Click for price.
3.2 EM2032L6-323.42.130.CM 4 to 2 43 32/5.3 H4 Click for price.
3.2 EM2032L6-323.42.210.CM 4 to 2 69 32/5.3 H4 Click for price.
5 EM1050L6-162.82.050.CM 8 to 2 16 16/2.6 H4 Click for price.
5 EM1050L6-162.82.080.CM 8 to 2 27 16/2.6 H4 Click for price.
5 EM1050V-162.82.080.CM* 8 to 2 27 16 VFD H4 Click for price.
5 EM3050L6-323.42.060.CM 4 to 2 20 32/5.3 H4 Click for price.
5 EM3050L6-323.42.110.CM 4 to 2 36 32/5.3 H4 Click for price.
5 EM3050L6-323.42.170.CM 4 to 2 56 32/5.3 H4 Click for price.
7.5 EM2063L6-162.82.060.CM 8 to 2 20 16/2.6 H4 Click for price.
7.5 EM2063L6-162.82.100.CM 8 to 2 33 16/2.6 H4 Click for price.
7.5 EM3063L6-322.42.060.CM 4 to 2 20 32/5.3 H4 Click for price.
7.5 EM3063L6-322.42.110.CM 4 to 2 36 32/5.3 H4 Click for price.
7.5 EM3063L6-322.42.170.CM 4 to 2 56 3232/5 H4 Click for price.
8 EM5080L6-323.42.061.CM 4 to 2 20 32/5.3 H4 Click for price.
8 EM5080L6-323.42.111.CM 4 to 2 36  32/5.3 H4 Click for price.
8 EM5080L6-323.42.171.CM 4 to 2 56 32/5.3 H4 Click for price.
10 EM3100L6-162.82.051.CM 8 to 2 15 16/2.6 H4 Click for price.
10 EM3100L6-162.82.081.CM 8 to 2 26 16/2.6 H4 Click for price.
10 EM3100V-045.82.081.CM* 8 to 2 27 16 VFD H4 Click for price.
10 EM5100L6-321.42.060.CM 4 to 2 20 32/5.3 H3 Click for price.
10 EM5100L6-321.42.110.CM 4 to 2 36 32/5.3 H3 Click for price.
10 EM5100L6-321.42.170.CM 4 to 2 56 32/5.3 H3 Click for price.
15 EM3136V-044.82.081.CM* 8 to 2 27 15 VFD H3 Click for price.
20 EM5200L6-163.82.050.CM 8 to 2 15 16/2.6 H4 Click for price.
20 EM5200L6-163.82.080.CM 8 to 2 26 16/2.6 H4 Click for price.
22.5 EM5200V-044.82.081.CM* 8 to 2 27 16 VFD H3 Click for price.
25 EM6250L6-163.82.050.CM 8 to 2 15 16/2.6 H4 Click for price.
25 EM6250L6-163.82.080.CM 8 to 2 26 16/2.6 H4 Click for price.

* Low headroom model specifically designed for patented track.

Click here for hoist options and prices.
