Free Standing Bridge Crane System – NOMAD®Free Standing Crane System – NOMAD® 1

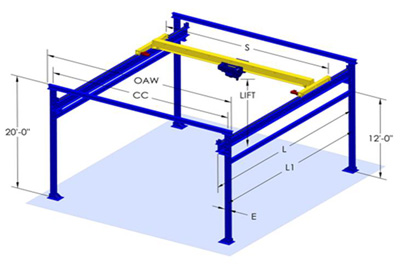

One Cell Configuration

Modular NOMAD® Free Standing Bridge Cranes are available in runway lengths of 20, 25 and 30 feet.

Multiple cells can be combined for long runways; existing systems can be retrofitted with additional cells.

Specifications

2 Ton Capacity

Item # Capacity Overall System Width (OAW)\ Overall Runway Length (L) OAW S CC Lift E L1 L2 Suggested List Price
NO-01-2-20-20 2 Tons 20′-0″ 20′-0″ 20′-0″ 16′-10″ 18′-10″ 17’0.75″ 6.375 18′-0″ n/a Click for prices.
NO-01-2-20-25 2 Tons 20′-0″ 25′-0″ 20′-0″ 16′-10″ 18′-10″ 17’0.75″ 6.375 23′-0″ n/a
NO-01-2-20-30 2 Tons 20′-0″ 30′-0″ 20′-0″ 16′-10″ 18′-10″ 17’0.75″ 6.375 28′-0″ n/a
NO-01-2-30-20 2 Tons 30′-0″ 20′-0″ 30′-0″ 26′-10″ 28′-10″ 16′-11.25″ 6.375 18′-0″ n/a
NO-01-2-30-25 2 Tons 30′-0″ 25′-0″ 30′-0″ 26′-10″ 28′-10″ 16′-11.25″ 6.375 23′-0″ n/a
NO-01-2-30-30 2 Tons 30′-0″ 30′-0″ 30′-0″ 26′-10″ 28′-10″ 16′-11.25″ 6.375 28′-0″ n/a
NO-01-2-40-20 2 Tons 40′-0″ 20′-0″ 40′-0″ 36′-10″ 38′-10″ 16′-9.5″ 6.375 18′-0″ n/a
NO-01-2-40-25 2 Tons 40′-0″ 25′-0″ 40′-0″ 36′-10″ 38′-10″ 16′-9.5″ 6.375 23′-0″ n/a
NO-01-2-40-30 2 Tons 40′-0″ 30′-0″ 40′-0″ 36′-10″ 38′-10″ 16′-9.5″ 6.375 28′-0″ n/a

3 Ton Capacity


Item # Capacity Overall System Width (OAW) Overall Runway Length (L) OAW S CC Lift E L1 L2 Suggested List Price*
NO-01-3-20-20 3 Tons 20′-0″ 20′-0″ 20′-0″ 16′-8″ 18′-8″ 16′-3.25″ 8 18′-0″ n/a Click for prices.
NO-01-3-20-25 3 Tons 20′-0″ 25′-0″ 20′-0″ 16′-8″ 18′-8″ 16′-3.25″ 8 23′-0″ n/a
NO-01-3-20-30 3 Tons 20′-0″ 30′-0″ 20′-0″ 16′-8″ 18′-8″ 16′-3.25″ 8 28′-0″ n/a
NO-01-3-30-20 3 Tons 30′-0″ 20′-0″ 30′-0″ 26′-8″ 28′-8″ 16′-1.5″ 8 18′-0″ n/a
NO-01-3-30-25 3 Tons 30′-0″ 25′-0″ 30′-0″ 26′-8″ 28′-8″ 16′-1.5″ 8 23′-0″ n/a
NO-01-3-30-30 3 Tons 30′-0″ 30′-0″ 30′-0″ 26′-8″ 28′-8″ 16′-1.5″ 8 28′-0″ n/a
NO-01-3-40-20 3 Tons 40′-0″ 20′-0″ 40′-0″ 36′-8″ 38′-8″ 15′-9″ 8 18′-0″ n/a
NO-01-3-40-25 3 Tons 40′-0″ 25′-0″ 40′-0″ 36′-8″ 38′-8″ 15′-9″ 8 23′-0″ n/a
NO-01-3-40-30 3 Tons 40′-0″ 30′-0″ 40′-0″ 36′-8″ 38′-8″ 15′-9″ 8 28′-0″ n/a

5 Ton Capacity


Item # Capacity Overall System Width (OAW) Overall Runway Length (L) OAW S CC Lift E L1 L2 uggested List Price*
NO-01-5-20-20 5 Tons 20′-0″ 20′-0″ 20′-0″ 16′-6″ 18′-6″ 16′-0.75″ 10 18′-0″ n/a Click for prices.
NO-01-5-20-25 5 Tons 20′-0″ 25′-0″ 20′-0″ 16′-6″ 18′-6″ 16′-0.75″ 10 23′-0″ n/a
NO-01-5-20-30 5 Tons 20′-0″ 30′-0″ 20′-0″ 16′-6″ 18′-6″ 16′-0.75″ 10 28′-0″ n/a
NO-01-5-30-20 5 Tons 30′-0″ 20′-0″ 30′-0″ 26′-6″ 28′-6″ 15′-8.5″ 10 18′-0″ n/a
NO-01-5-30-25 5 Tons 30′-0″ 25′-0″ 30′-0″ 26′-6″ 28′-6″ 15′-8.5″ 10 23′-0″ n/a
NO-01-5-30-30 5 Tons 30′-0″ 30′-0″ 30′-0″ 26′-6″ 28′-6″ 15′-8.5″ 10 28′-0″ n/a
NO-01-5-40-20 5 Tons 40′-0″ 20′-0″ 40′-0″ 36′-6″ 38′-6″ 15′-6.5″ 10 18′-0″ n/a
NO-01-5-40-25 5 Tons 40′-0″ 25′-0″ 40′-0″ 36′-6″ 38′-6″ 15′-6.5″ 10 23′-0″ n/a
NO-01-5-40-30 5 Tons 40′-0″ 30′-0″ 40′-0″ 36′-6″ 38′-6″ 15′-6.5″ 10 28′-0″ n/a

7.5 Ton Capacity

Item # Capacity Overall System Width (OAW) Overall Runway Length (L) OAW S CC Lift E L1 L2  Suggested List Price*
NO-01-75-20-20 7.5 Tons 20′-0″ 20′-0″ 20′-0″ 16′-6″ 18′-6″ 15′-11″ 10 18′-0″ n/a Click for prices.
NO-01-75-20-25 7.5 Tons 20′-0″ 25′-0″ 20′-0″ 16′-6″ 18′-6″ 15′-11″ 10 23′-0″ n/a
NO-01-75-20-30 7.5 Tons 20′-0″ 30′-0″ 20′-0″ 16′-6″ 18′-6″ 15′-11″ 10 28′-0″ n/a
NO-01-75-30-20 7.5 Tons 30′-0″ 20′-0″ 30′-0″ 26′-6″ 28′-6″ 15′-6.5″ 10 18′-0″ n/a
NO-01-75-30-25 7.5 Tons 30′-0″ 25′-0″ 30′-0″ 26′-6″ 28′-6″ 15′-6.5″ 10 23′-0″ n/a
NO-01-75-30-30 7.5 Tons 30′-0″ 30′-0″ 30′-0″ 26′-6″ 28′-6″ 15′-6.5″ 10 28′-0″ n/a
NO-01-75-40-20 7.5 Tons 40′-0″ 20′-0″ 40′-0″ 36′-6″ 38′-6″ 15′-8″ 10 18′-0″ n/a
NO-01-75-40-25 7.5 Tons 40′-0″ 25′-0″ 40′-0″ 36′-6″ 38′-6″ 15′-8″ 10 23′-0″ n/a
NO-01-75-40-30 7.5 Tons 40′-0″ 30′-0″ 40′-0″ 36′-6″ 38′-6″ 15′-8″ 10 28′-0″ n/a

10 Ton Capacity

Item # Capacity Overall System Width (OAW) Overall Runway Length (L) OAW S CC Lift E L1 L2 Suggested List Price*
NO-01-10-20-20 10 Tons 20′-0″ 20′-0″ 20′-0″ 16′-6″ 18′-6″ 15′-2.5″ 10 18′-0″ n/a Click for prices.
NO-01-10-20-25 10 Tons 20′-0″ 25′-0″ 20′-0″ 16′-6″ 18′-6″ 15′-2.5″ 10 23′-0″ n/a
NO-01-10-20-30 10 Tons 20′-0″ 30′-0″ 20′-0″ 16′-6″ 18′-6″ 15′-2.5″ 10 28′-0″ n/a
NO-01-10-30-20 10 Tons 30′-0″ 20′-0″ 30′-0″ 26′-6″ 28′-6″ 15′-0″ 10 18′-0″ n/a
NO-01-10-30-25 10 Tons 30′-0″ 25′-0″ 30′-0″ 26′-6″ 28′-6″ 15′-0″ 10 23′-0″ n/a
NO-01-10-30-30 10 Tons 30′-0″ 30′-0″ 30′-0″ 26′-6″ 28′-6″ 15′-0″ 10 28′-0″ n/a
NO-01-10-40-20 10 Tons 40′-0″ 20′-0″ 40′-0″ 36′-6″ 38′-6″ 14′-7.5″ 10 18′-0″ n/a
NO-01-10-40-25 10 Tons 40′-0″ 25′-0″ 40′-0″ 36′-6″ 38′-6″ 14′-7.5″ 10 23′-0″ n/a
NO-01-10-40-30 10 Tons 40′-0″ 30′-0″ 40′-0″ 36′-6″ 38′-6″ 14′-7.5″ 10 28′-0″ n/a
