EMH End TrucksBridge Control Panels

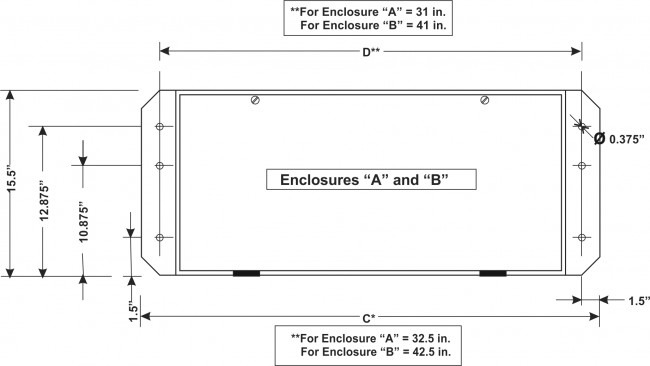

Bridge Control Panel Dimensions

Bridge Control Specifications

Bridge HP Lockable
Disconnect**
Mainline
Contactor**
Enclosure
Type*
460 volt
VFD
230-208 volt
VFD
2 40 amp 32 amp A Click for price. Click for price.
3 40 amp 32 amp A Click for price. Click for price.
5 63 amp 50 amp A Click for price. Click for price.
7.5 80 amp 65 amp B Click for price. Click for price.
10 80 amp 80 amp B Click for price. Click for price.

* See Bridge Control Panel enclosure Dimensions drawing for details.

** Higher amperage ratings available. Contact EMH, Inc. for details.

Bridge Control Panel Prices are List Prices and include:

  • Mainline Fuses
  • Quick Disconnect Plugs
  • Branch Fusing
  • Control Transformer with Primary and Secondary Fusing
  • PE Variable Frequency Drive
  • NEMA 12 Enclosure
  • Dynamic Braking
  • Lockable Disconnect
