AL SYSTEMS™ Ceiling Mounted Workstation Crane Systems / Single Girder

Capacity: 250 lbs

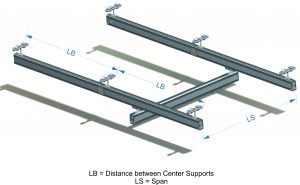

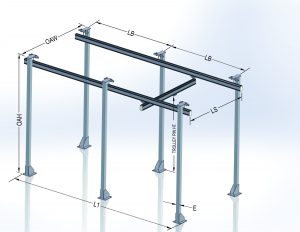

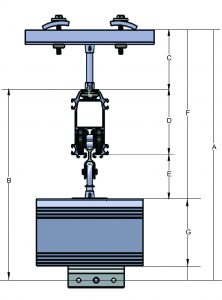

Model Number Bridge Length Bridge Rail LS Runway Length Runway Rail Number of Suspensions LB A B C D E F G   Lamp Post Free Standing System Adder Coiled Air Adder Flat cable & sliders Adder Vacuum Hose Trolleys Adder
C-250-10-10 10 AL1 9′-4.5″ 10 AL1 4 9′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″ Click for prices. Click for prices. Click for prices. Click for pries. Click for prices.
C-250-10-15 10 AL1 9′-4.5″ 15 AL1 4 14′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-10-20 10 AL1 9′-4.5″ 20 AL1 4 19′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-10-30 10 AL1 9′-4.5″ 30 AL1 6 14′-6″ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-10-40 10 AL1 9′-4.5″ 40 AL1 6 18′-6″ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-10-60 10 AL1 9′-4.5″ 60 AL1 8 19′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-15-10 15 AL1 14′-4.5″ 10 AL1 4 9′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-15-15 15 AL1 14′-4.5″ 15 AL1 4 14′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-15-20 15 AL1 14′-4.5″ 20 AL1 4 19′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-15-30 15 AL1 14′-4.5″ 30 AL1 6 14′-6″ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-15-40 15 AL1 14′-4.5″ 40 AL1 6 18′-6″ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-15-60 15 AL1 14′-4.5″ 60 AL1 8 19′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-20-10 20 AL1 19′-4.5″ 10 AL1 4 9′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-20-15 20 AL1 19′-4.5″ 15 AL1 4 14′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-20-20 20 AL1 19′-4.5″ 20 AL1 4 19′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-20-30 20 AL1 19′-4.5″ 30 AL1 6 14′-6″ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-20-40 20 AL1 19′-4.5″ 40 AL1 6 18′-6″ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″
C-250-20-60 20 AL1 19′-4.5″ 60 AL1 8 19′ 25-3/8″ 18-1/2″ 6-7/8″ 5-7/8″ 4-7/8″ 17-5/8″ 5-7/8″

Capacity: 500 lbs.

Model Number Bridge Length Bridge Rail LS Runway Length Runway Rail Number of Suspensions   A B C D E F G Ceiling Mounted System Price Lamp Post Free Standing System Adder Coiled Air Adder Flat cable & sliders Adder Vacuum Hose Trolleys Adder
C-500-10-10 10 AL2 9′-4.5″ 10 AL2 4 9′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″ Click for prices. Click for prices. Click for prices. Click for prices. Click for prices.
C-500-10-15 10 AL2 9′-4.5″ 15 AL2 4 14′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-10-20 10 AL2 9′-4.5″ 20 AL2 4 19′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-10-30 10 AL2 9′-4.5″ 30 AL2 6 14′-6″ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-10-40 10 AL2 9′-4.5″ 40 AL2 6 18′-6″ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-10-60 10 AL2 9′-4.5″ 60 AL2 8 19′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-15-10 15 AL2 14′-4.5″ 10 AL2 4 9′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-15-15 15 AL2 14′-4.5″ 15 AL2 4 14′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-15-20 15 AL2 14′-4.5″ 20 AL2 4 19′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-15-30 15 AL2 14′-4.5″ 30 AL2 6 14′-6″ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-15-40 15 AL2 14′-4.5″ 40 AL2 6 18′-6″ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-15-60 15 AL2 14′-4.5″ 60 AL2 8 19′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-20-10 20 AL2 19′-4.5″ 10 AL2 4 9′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-20-15 20 AL2 19′-4.5″ 15 AL2 4 14′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-20-20 20 AL2 19′-4.5″ 20 AL2 4 19′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-20-30 20 AL2 19′-4.5″ 30 AL2 6 14′-6″ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-20-40 20 AL2 19′-4.5″ 40 AL2 6 18′-6″ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″
C-500-20-60 20 AL2 19′-4.5″ 60 AL2 8 19′ 28-3/8″ 21-1/2″ 6-7/8″ 7-1/2″ 4-3/4″ 19-1/8″ 7-1/2″

Capacity: 1000 lbs.

Model Number Bridge Length Bridge Rail LS Runway Length Runway Rail Number of Suspensions   A B C D E F G Ceiling Mounted System Price Lamp Post Free Standing System Adder Coiled Air Adder Flat cable & sliders Adder Vacuum Hose Trolleys Adder
C-1000-10-10 10 AL3 9′-4.5″ 10 AL3 4 9′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″ Click for prices. Click for prices. Click for prices. Click for prices. Click for prices.
C-1000-10-15 10 AL3 9′-4.5″ 15 AL3 4 14′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-10-20 10 AL3 9′-4.5″ 20 AL3 4 19′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-10-30 10 AL3 9′-4.5″ 30 AL3 6 14′-6″ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-10-40 10 AL3 9′-4.5″ 40 AL3 6 18′-6″ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-10-60 10 AL3 9′-4.5″ 60 AL3 8 19′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-15-10 15 AL3 14′-4.5″ 10 AL3 4 9′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-15-15 15 AL3 14′-4.5″ 15 AL3 4 14′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-15-20 15 AL3 14′-4.5″ 20 AL3 4 19′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-15-30 15 AL3 14′-4.5″ 30 AL3 6 14′-6″ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-15-40 15 AL3 14′-4.5″ 40 AL3 6 18′-6″ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-15-60 15 AL3 14′-4.5″ 60 AL3 8 19′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-20-10 20 AL3 19′-4.5″ 10 AL3 4 9′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-20-15 20 AL3 19′-4.5″ 15 AL3 4 14′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-20-20 20 AL3 19′-4.5″ 20 AL3 4 19′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-20-30 20 AL3 19′-4.5″ 30 AL3 6 14′-6″ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-20-40 20 AL3 19′-4.5″ 40 AL3 6 18′-6″ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″
C-1000-20-60 20 AL3 19′-4.5″ 60 AL3 8 19′ 29-7/8″ 23″ 6-7/8″ 8-1/4″ 4-3/4″ 19-7/8″ 8-1/4″

Capacity: 2000 lbs.

Model Number Bridge Length Bridge Rail LS Runway Length Runway Rail Number of Suspensions   A B C D E F G Ceiling Mounted System Price Lamp Post Free Standing System Adder Coiled Air Adder Flat cable & sliders Adder Vacuum Hose Trolleys Adder
C-2000-10-10 10 AL3 9′-4.5″ 10 AL3 4 9′ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″ Click for prices. Click for prices. Click for prices. Click for prices. Click for prices.
C-2000-10-15 10 AL3 9′-4.5″ 15 AL3 4 14′ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-10-20 10 AL3 9′-4.5″ 20 AL3 4 19′ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-10-30 10 AL3 9′-4.5″ 30 AL3 6 14′-6″ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-10-40 10 AL3 9′-4.5″ 40 AL3 8 18′-6″ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-10-60 10 AL3 9′-4.5″ 60 AL3 10 19′ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-15-10 15 AL3 14′-4.5″ 10 AL3 4 9′ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-15-15 15 AL3 14′-4.5″ 15 AL3 4 14′ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-15-20 15 AL3 14′-4.5″ 20 AL3 4 19′ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-15-30 15 AL3 14′-4.5″ 30 AL3 6 14′-6″ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-15-40 15 AL3 14′-4.5″ 40 AL3 8 18′-6″ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″
C-2000-15-60 15 AL3 14′-4.5″ 60 AL3 10 19′ 35-1/8″ 28-1/4″ 6-7/8″ 8-1/4″ 7-3/8″ 19-7/8″ 8-1/4″

 Prices effective July, 2019 and subject to change without notice.

Click for delivery information.

EMH designs, sells, and manufactures a complete line of overhead material handling equipment for loads from 35 lbs. to 300 tons
